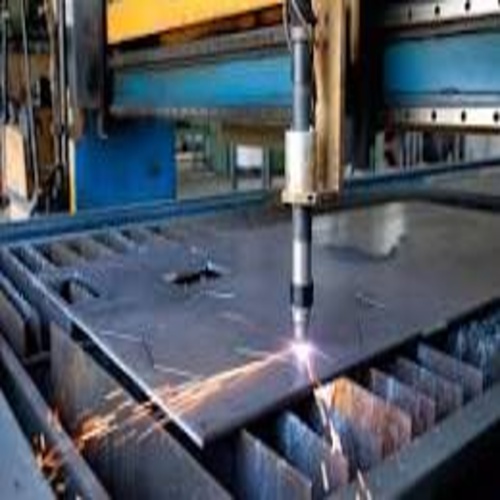

CNC Plasma Cutting Machine

Name: CNC Plasma Cutting Machine
Brand: MESHAK ENGINEERING AND AUTOMATION (OPC) PRIVATE LIMITED
Price: 500000.0 INR
Availability: InStock

Price 500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

CNC Plasma Cutting Machine Specification

Product Type
CNC Plasma Cutting Machine

General Use
Metal Plate Cutting, Sheet Metal Fabrication

Material
Mild Steel, Stainless Steel, Aluminum, Copper, Brass

Type
Automatic Plasma Cutting

Capacity
Up to 30 mm thick (varies with plasma source)

Weight (kg)
1500-2500 kg (depends on configuration)

Computerized
Yes

Automatic
Yes

PLC Control
Available

Bar Feeder
Optional

Power Source
Electric

Power Consumption
6-20 kW (depending on model)

Rigidity
High Structural Rigidity

Voltage
220V/380V/415V (as per requirement)

Motor
Stepper or Servo Motor

Table Size
1500 x 3000 mm (customizable)

Spindle Speed
Not Applicable (uses plasma torch)

Axial Choice
2 axis/3 axis (X,Y or X,Y,Z)

Dimension (L*W*H)
3500 x 2200 x 1500 mm (approx, varies with model)

Feature
High Cutting Precision, Fast Processing, User-friendly CNC Interface

Color
Blue/Yellow/Custom

Cutting Speed
0-8000 mm/min (adjustable)

Support Gas
Compressed Air, Oxygen, Nitrogen, Argon (as per plasma source)

Positioning Accuracy
0.05 mm

Interface Language
Multi-language selectable

Software Compatibility
Compatible with AutoCAD, FastCAM, etc.

Drive System
Rack and Pinion

Control System
Industrial CNC Controller with LCD Display

Working Environment
Temperature: 0-45C, Humidity: <95%

Safety Features
Emergency Stop, Overload Protection, Electrical Interlock

Input Method
USB/Network Transfer

Cutting Mode
Plasma (with option for Flame/Oxy-fuel cutting)

Dust Extraction
Optional Fume Extractor Available

Optional Accessories
Height Controller, Rotary Attachment for Pipe Cutting

Transmission
Dual Drive (for Gantry type)

Torch Cooling System
Air or Water Cooled

About CNC Plasma Cutting Machine

Experience rare precision and dazzling efficiency with this CNC Plasma Cutting Machine, engineered for towering performance in metal fabrication environments. Melding a robust industrial CNC controller with a cost-effective dual rack-and-pinion drive, it delivers rarefied accuracy (positioning up to 0.05 mm) and adjustable high-speed cutting (0-8000 mm/min). Powerful yet reserve in energy usage (6-20 kW), this machine is ideal for complex tasks across mild steel, stainless, and non-ferrous metals. User-friendly interface, multi-language options, and advanced safety features ensure flawless operation every time.

Features, Applications, and Usage of CNC Plasma Cutting Machine

This CNC Plasma Cutting Machine boasts high structural rigidity, fast processing, and cutting precision for metal plates up to 30 mm thick. Its automatic operation, multi-language CNC interface, and compatibility with AutoCAD and FastCAM make it user-friendly. Ideal for metal fabrication, sheet metal workshops, and general industrial applications, it supports air and water cooling with optional rotary attachments for pipe cutting. Usage extends to mild and stainless steel, aluminum, brass, and copper processing.

Order Processing, Sample Policy, and Supply Ability for the CNC Plasma Cutting Machine

Order processing for the CNC Plasma Cutting Machine is streamlined to serve both domestic markets and international buyers. With a strong market value, machines are shipped FOB from major ports, and sample policies are available upon request for qualified buyers. The supply ability is robust, supporting large and custom orders efficiently to ensure timely delivery. The company maintains reserves to accommodate urgent or high-volume requests, making it a reliable supplier in the sector.

FAQ's of CNC Plasma Cutting Machine:

Q: How does the CNC Plasma Cutting Machine ensure high cutting precision?

A: The machine's high structural rigidity, paired with an industrial CNC controller and rack-and-pinion dual drive system, allows for accurate positioning up to 0.05 mm, ensuring excellent precision even at high cutting speeds.

Q: What materials can be processed with this plasma cutter?

A: It can cut a variety of metals including mild steel, stainless steel, aluminum, copper, and brass, handling thicknesses up to 30 mm depending on the plasma source.

Q: When is it beneficial to use the water-cooled torch option?

A: Water-cooled torches are ideal for high-duty cycles and thicker materials, providing superior cooling and prolonging torch life during intensive or continuous cutting operations.

Q: Where is the CNC Plasma Cutting Machine most commonly used?

A: This machine is widely used in metal fabrication workshops, manufacturing plants, sheet metal processing facilities, and industrial environments where precision and speed are critical.

Q: What are the advantages of the optional height controller and rotary attachment?

A: The height controller maintains optimal torch distance for consistent cuts, while the rotary attachment enables efficient pipe and tube cutting, expanding the machine's application versatility.

Q: How is data transferred to the CNC Plasma Cutting Machine?

A: Input is simplified via USB or network transfer, ensuring compatibility with most design and production workflows, especially when using software like AutoCAD or FastCAM.
